安诺尼（AARONIA）发布喇叭天线PowerLOG10800

时间：2014/7/23 16:37:07 来源：安诺尼中国 | 深圳拓力智慧

Aaronia has launched the PowerLOG® 10800 (1GHz-8GHz)

安诺尼（AARONIA）发布喇叭天线PowerLOG10800

The horn antennas of the Aaronia PowerLog ® series are characterized by an enormous broad frequency range and very high input powers. The gain increases with increasing frequency up to max. 13 dBi. This gain increase compensates the increasing cable losses at higher frequencies.

Aaronia PowerLog系列喇叭天线特点是超宽频率范围和非常高的输入功率，增益线性变化，最大增益可达13 dBi，可作为高频部分电缆损耗的补偿。

The PowerLog 10800 is suitable for both transmitting and receiving purposes. Due to the very high maximum transmission power of up to 400W (peak), the PowerLog is especially suitable for EMC and immunity test measurements.

Aaronia PowerLog 10800适用于发射与接收。最大传输功率400 w(峰值)，特别适用于电磁兼容和电磁干扰测试。

The antenna is delivered including detailed, specific calibration data.

天线提供详细、具体的校准数据。

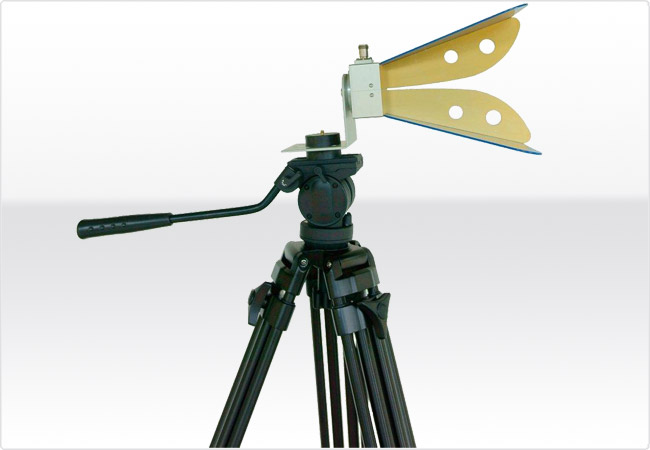

As an accessory, we recommend the heavy tripod for safe installation and simple change in polarization of the antenna.

推荐使用重型三脚架，方便安装，简单调整天线方向改变天线极化方向。

Product Features 产品特点

• Wide frequency range from 1GHz to 8GHz

超宽频率范围

• Supports high input levels up to 400W (peak)

最大输入功率400 w(峰值)

• High gain up to 13dBi

13 dbi高增益

Product Standard 产品规格

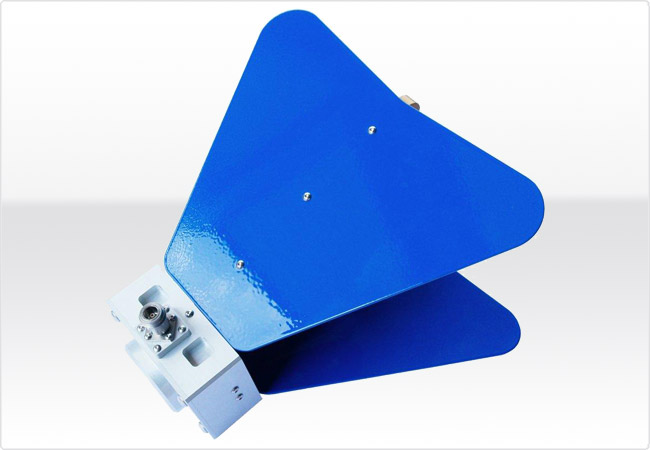

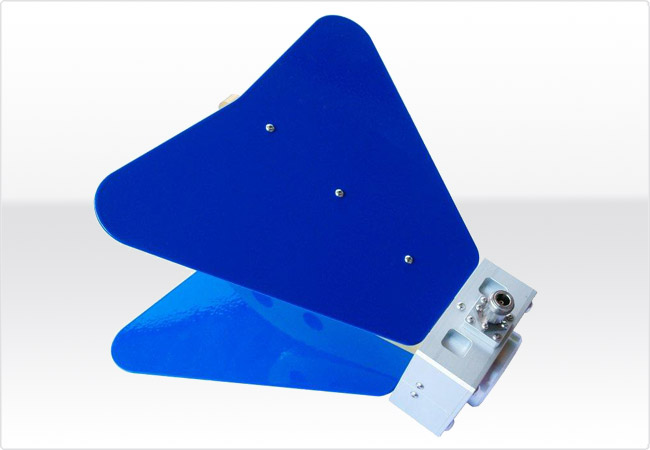

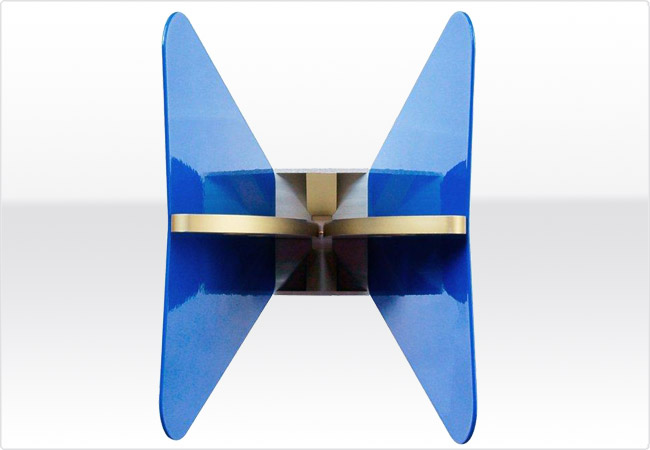

Design ： Double Ridged Horn

设计：双脊喇叭

Frequency range：1GHz - 8GHz

频率范围：1-8GHz

Max. transmission power：400W (peak), 200W (CW)

最大功率：400 w(峰值),200 w(CW)

Gain (typ.)：max. 13dBi

增益(典型值)：最大13 dBi

VSWR (typ.)：<1:2.5

电压驻波比(典型值)：<1:2.5

Nominal impedance：50 Ohms

阻抗：50欧姆

Tripod connection：1/4”

三脚架连接：1/4”

RF connection：N (female)

射频连接：N（母头）

Dimensions：340x200x25 mm (L/W/D)

尺寸：340x200x25 mm (L/W/D)

Weight：1400g

重量:1400克

Included with delivery包装及配件

PowerLOG 10800, specific calibration data, mounting plate

PowerLOG 10800,具体校准数据,安装板
