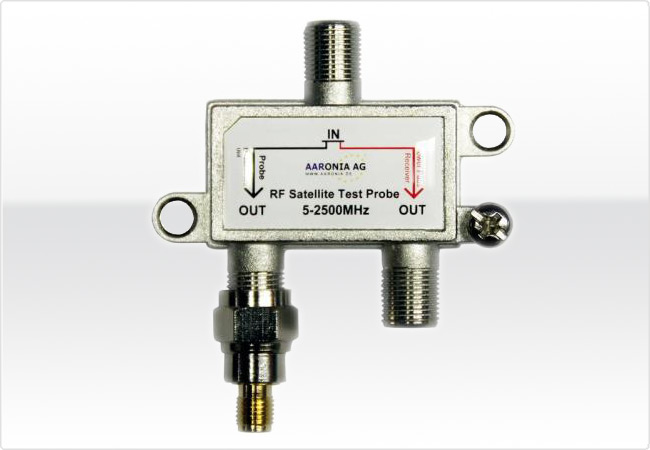

The RF Satellite test probe allows direct measurement at the LNB output or at the satellite receiver or cable TV. The measurement can be performed with simultaneous use of the connection, the probe offers two separate signal outputs for the connected spectrum analyzer/measuring receiver as well as the receiver. This allows a signal evaluation and measurement recording during the normal operation. |
卫星射频测试探头允许直接测量LNB输出或卫星接收器或有线电视。在执行测量过程中同时提供相互隔离的输出信号到频谱分析仪和卫星接收机,使得在卫星接收正常工作的同时进行信号的评估和记录。 |
The built-in DC blocker suppresses reliable the harmful DC voltage for the Spectran. The package includes all necessary cables (SMA-to-F adapter, 0,3m SMA cable, 1,5m F cable) for direct connection of the measuring device and the receiver. |
内置直流隔离器可靠隔离直流电压对频谱仪的伤害。提供必需的连接线(SMA转接头、0.3m SMA连接线、1.5m 连接线)方便直接连接测试仪器和接收机。 |
技术参数 Technical data |
• Bandwidth: 5-2500MHz |
频率范围:5-2500MHz |
• Dimensions (L/W/H): 50x58x14mm |
尺寸(L/W/H): 50x58x14mm |
• Weight : 30gr |
重量:30g |
|
